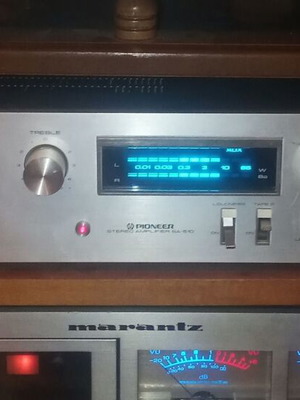

μεταχειρισμένα Ενισχυτής PIONEER SA-510 blueline

Άριστο σε πλήρη λειτουργια
Έχει γίνει καθαρισμός στις πλακέτες και ψεκασμα στις επαφες.
Καθαρισμός σε πρόσοψη και πλήκτρα.
Eχει καποιες μικρογρατζουνιες δειτε τις εικονες

Specifications
----------------------
Country=Japan
Manufacturer / Brand=Pioneer Corporation; Tokyo
Year=1980/1981
Category=Audio Amplifier or -mixer
Number of Transistors=26
Semiconductors=Main principle
Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker
- This model requires external speaker(s).
Power out
60 W (undistorted)
Material
Metal case
from Radiomuseum.org
Model: Stereo Amplifier SA-510 - Pioneer Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (WHD)
420 x 94 x 347 mm / 16.5 x 3.7 x 13.7 inch
Notes
A hi-fi stereo integrated amplifier housed in a metal case with continuous power output of 30 watts per channel into 8 ohms. With fluorescent power meter, rotary controls for Volume, Balance, Bass and Treble, rotary Function selector (Tuner, Phono, Tape1, Aux), switches for Tape2, Loudness and Subsonic filter, rotary switch for Loudspeakers (Off, A, B) and a jack for headphones. On the rear panel, RCA phono sockets for input Phono, Tuner and Aux, for input/output Tape1 and Tape2, terminals for 2 pairs of loudspeakers (A, B) and 3 AC outlets (except YP), 2 switched and 1 unswitched.

Specification
Amplifier Section
Continuous Power Output 30 watts per channel into 8Ω
from 20Hz to 20,000Hz
with no more than 0.03% THD
Total Harmonic Distortion
(20Hz-20,000Hz, 8Ω, from AUX)
15 watts per channel power output No more than 0.02%
Intermodulation Distortion
continuous rated power output
15 watts per channel power output No more than 0.03%
No more than 0.02%
Damping Factor (20Hz-20,000Hz, 8Ω) 40
Input (Sensitivity/Impedance)
PHONO
TUNER
AUX
TAPE PLAY 1, 2 2.5mV/50kΩ
150mV/50kΩ
150mV/50kΩ
150mV/50kΩ
Output (Level)
TAPE REC 1, 2
Speaker 150mV
A, B, OFF
Frequency Response
PHONO (RIAA Equalization)
TUNER, AUX, TAPE PLAY 1, 2 20Hz to 20,000Hz ±0.3dB
10Hz to 60,000Hz ±3dB
Subsonic Filter 15Hz (-6dB/Oct)
Hum and Noise
(IHF, short-circuited, A network)
PHONO
TUNER, AUX, TAPE PLAY 1, 2 82dB
100dB
Hum and Noise
(DIN, continuous Power/50mW)
PHONO
TUNER, AUX, TAPE PLAY 1, 2 68dB/58dB
85dB/60dB
Versions/Power requirements

KU USA 120V AC 60Hz
S General export 110V, 120V, 220V and 240V AC 50/60Hz (with voltage selector)
S/G US Military 110V, 120V, 220V and 240V AC 50/60Hz (with voltage selector)
HE Europe 220V AC 50/60Hz
HB UK 240V AC 50/60Hz
YP Australia 240V AC 50/60Hz
Power consumption: 220 watts (HE, HB, YP), 85 watts (S/G, S), 80 watts (KU)

Net weight (2.2 lb = 1 kg)
6 kg / 13 lb 3.5 oz (13.216 lb)
Mentioned in
Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy
Literature/Schematics (1)
- - Manufacturers Literature (1980/81 Pioneer Hi-Fi Stereo catalogue)
Literature/Schematics (2)
- - Manufacturers Literature (Operating Instructions Pioneer SA-510)
Literature/Schematics (3)
- - Manufacturers Literature (Service manual Pioneer SA-510 dated Apr 1980)
Author
Model page created by Alessandro De Poi. See "Data change" for further contributors.
